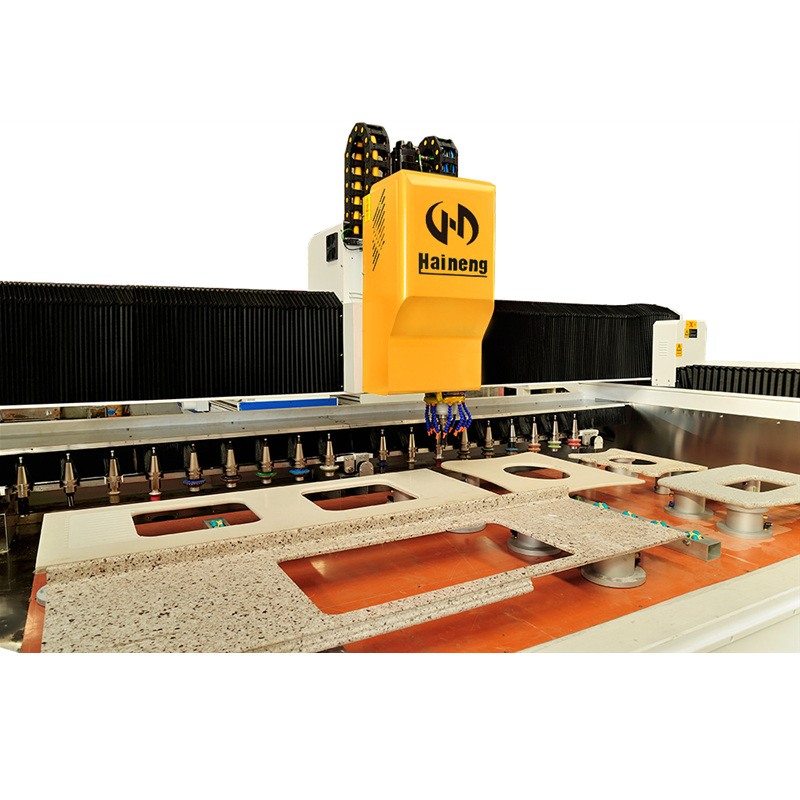

Stone CNC Countertop Machine

Model:SYS-3017

Μία από τις κινεζικές εταιρείες που προσφέρουν το CNC Countertop Machine για το Xinhaineng. Για εσάς, μπορούμε να προσφέρουμε καλύτερη τιμολόγηση και αρμόδια εξυπηρέτηση. Εάν σας ενδιαφέρουν η μηχανή CNC Countertop Contress, επικοινωνήστε μαζί μας. Προσκολλώνται στο πρότυπο της συνείδησης, δεσμευμένης υπηρεσίας με το κόστος της διασφάλισης της ποιότητας. Τη συμμορφώνεται με το πρότυπο της αφοσιωμένης υπηρεσίας με τη συνείδηση, ώστε να μπορείτε να αισθάνεστε ασφαλείς.

Αποστολή Ερώτησης

περιγραφή προϊόντος

Stone CNC countertop machine is a high-precision processing equipment specially used for processing stone countertops. Stone countertops are widely used in kitchens, bathrooms, laboratories and other places. Their processing requires high precision and high smoothness, so special processing equipment is needed to achieve it. The stone countertop processing center integrates functions such as cutting, hole opening, edge trimming, polishing, etc., which can meet the processing needs of stone countertops with different shapes, sizes and surface treatment requirements. Stone CNC countertop machine is very simple to use. You only need to input the drawings into the computer control system, and then set the processing parameters as required to start the processing process. The equipment has the advantages of high efficiency, high precision, simple operation, fast processing speed, and high degree of automation, which can significantly improve production efficiency and product quality.

Stone CNC countertop machine mainly includes the following aspects:

1. Stone countertop cutting: The stone countertop processing center can realize the precise cutting of stone countertops, including straight cutting, curve cutting, etc., which can meet the processing needs of stone countertops of different shapes and sizes.

2. Stone countertop drilling: The stone countertop processing center is equipped with drilling tools, which can accurately drill holes in stone countertops to meet the installation requirements of sinks, faucets and other equipment.

3. Stone countertop edge trimming: The stone countertop processing center can trim the edges of stone countertops to make them smooth and flat, improving the overall aesthetics of the countertops.

4. Stone countertop polishing: Through special polishing tools and processes, the stone countertop processing center can polish the stone countertops to make the countertop surface brighter and more delicate.

Type	Unit	SYS-3017
Processing Length	mm	3000
Processing Width	mm	1700
Working Thickness	mm	＜=35
Max traverse speed	mm/min	25000
Max working speed	mm/min	15000
Spindle		Taiwan mechanical spindle
Milling Cutter Diameter	mm	10-25
Drilling wheel Diameter	mm	10-50
Shaping Wheel Diameter	mm	60-80
Polishing Wheel Diameter	mm	50-100
Main Motor Power	kw	11
Total Power	kw	About 10 kw
Main Electrical Apparatus		Shnaider, OMRON
Max traverse speed	mm/min	25000
Max working speed	mm/min	15000
Spindle		Taiwan Mechanical belt spindle.
Spindle speed	rpm	1500-10000
Tool magzine	pcs	24
Working voltage	V	AC380V/220V
Command		G code

Processing process

ADDITOONAL TOOLS WITH DIFFERNETN SHAPES AND SIZE SHOULD BE BUY SEPARATELY

Packaging & Shipping
